Renesas Electronics America Inc
HI-SPD OPTOCPLR 8-PIN DIP

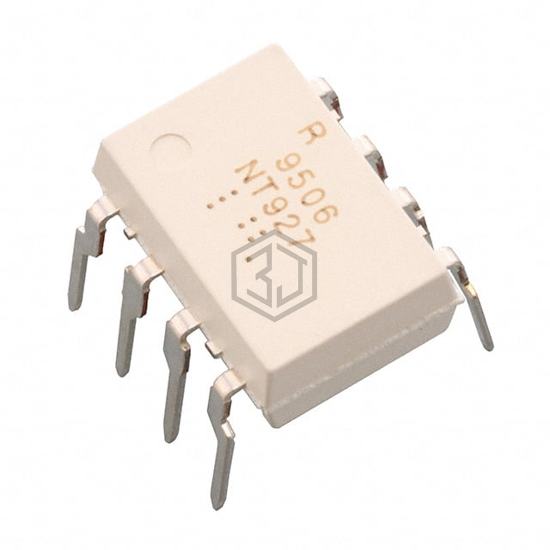

PS9506-V-AX is a Isolators - Gate Drivers manufactured by Renesas Electronics America Inc. HI-SPD OPTOCPLR 8-PIN DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 909
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 400ns, 400ns |
| Pulse Width Distortion (Max) | 250ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Current - Output High, Low | 400mA, 400mA |
| Current - Peak Output | 600mA |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | CSA, SEMKO, UL, VDE |
Submit your RFQ for PS9506-V-AX and get a quote within 24 hours.
