Renesas Electronics America Inc

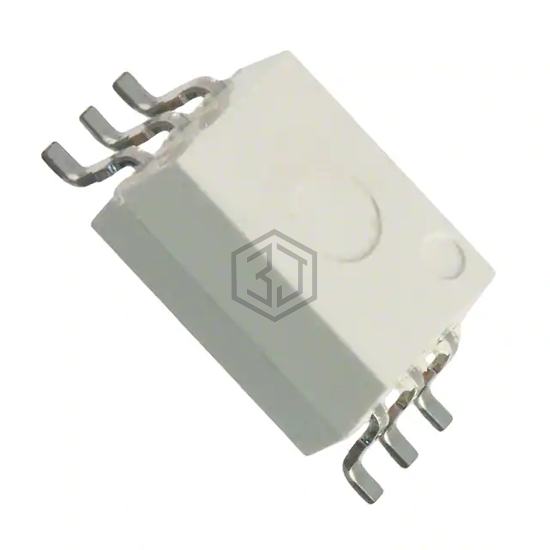

OPTOISO 5KV PUSH PULL 6DIP GW
PS9303L2-V-E3-AX is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. OPTOISO 5KV PUSH PULL 6DIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 20V, package / case 6-SOIC (0.268", 6.80mm Width).
In Stock: 3,509
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25 mA |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 550ns |
| Rise / Fall Time (Typ) | 120ns, 90ns |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP Gull Wing |
Submit your RFQ for PS9303L2-V-E3-AX and get a quote within 24 hours.
