Renesas Electronics America Inc
OPTOISO 3.75KV OPN COLLECTOR 5SO

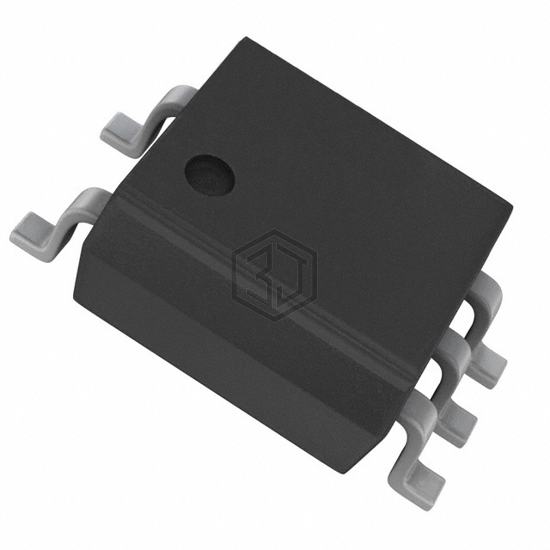

PS9113-AX is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. OPTOISO 3.75KV OPN COLLECTOR 5SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 20V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.
In Stock: 3,894
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 15 mA |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 750ns, 500ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-SO |
Submit your RFQ for PS9113-AX and get a quote within 24 hours.
