Renesas Electronics America Inc
OPTOISO 2.5KV TRANS 4MINIFLAT

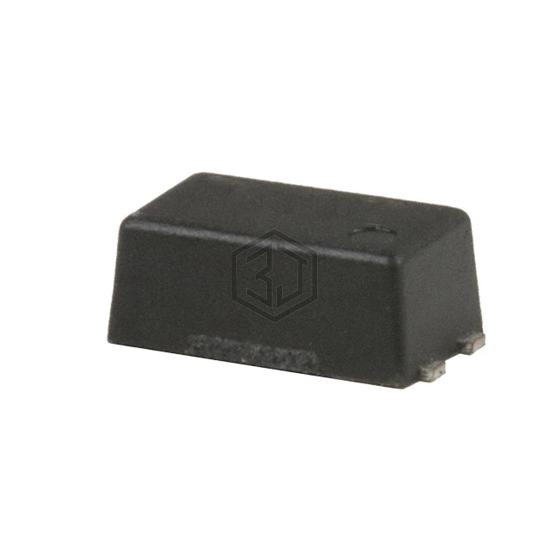

PS2913-1-F3-K-AX is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISO 2.5KV TRANS 4MINIFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 4-SMD, Flat Leads.
In Stock: 9,232
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Current Transfer Ratio (Max) | 200% @ 1mA |
| Turn On / Turn Off Time (Typ) | 80µs, 50µs |
| Rise / Fall Time (Typ) | 10µs, 10µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 120V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Flat Leads |
| Supplier Device Package | 4-Mini-Flat |
Submit your RFQ for PS2913-1-F3-K-AX and get a quote within 24 hours.
