Renesas Electronics America Inc
OPTOISOLATOR 5KV 4CH TRANS 16DIP

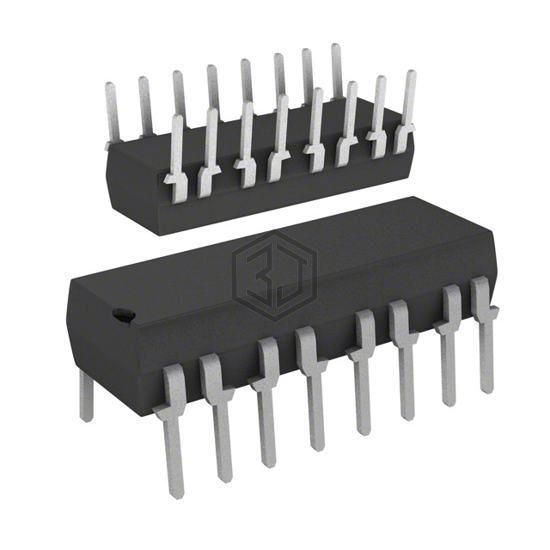

PS2501-4-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTOISOLATOR 5KV 4CH TRANS 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.17V, package / case 16-DIP (0.300", 7.62mm).
In Stock: 4,480
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Number of Channels | 4 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.17V |
| Current - DC Forward (If) (Max) | 80 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
Submit your RFQ for PS2501-4-A and get a quote within 24 hours.
