Renesas Electronics America Inc
ABU / MOSFET

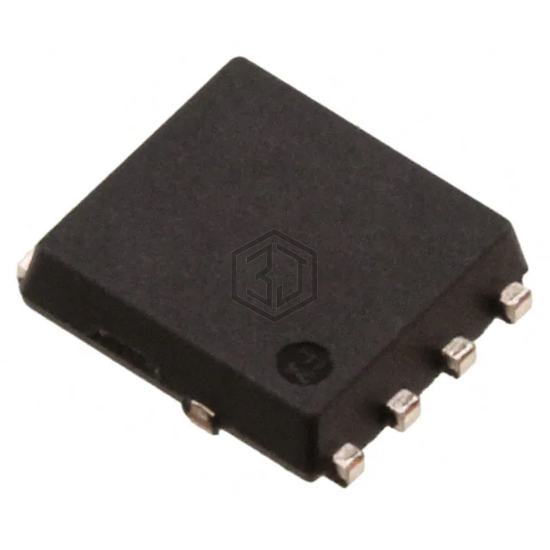

NP75N04YLG-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. ABU / MOSFET. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerLDFN.
In Stock: 2,418
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 116 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6450 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 138W (Ta) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HSON (5x5.4) |
| Package / Case | 8-PowerLDFN |
Submit your RFQ for NP75N04YLG-E1-AY and get a quote within 24 hours.
