Renesas Electronics America Inc
POWER TRS2

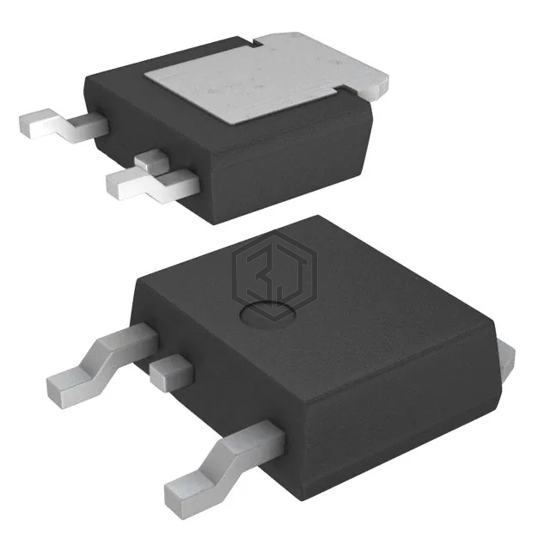

NP75N04VDK-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. POWER TRS2. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 2,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.7mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2450 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.2W (Ta), 75W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (MP-3ZP) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Submit your RFQ for NP75N04VDK-E1-AY and get a quote within 24 hours.
