Renesas Electronics America Inc

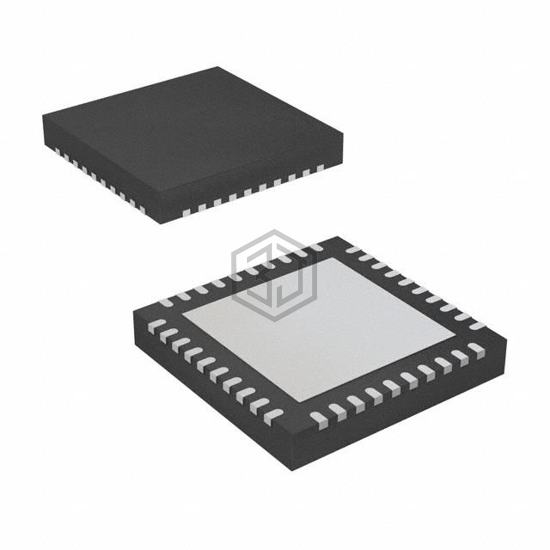

IC PWR MODULE DRMOS 40A 40QFN
ISL99140IRZ-T is a PMIC - Full, Half-Bridge Drivers manufactured by Renesas Electronics America Inc. IC PWR MODULE DRMOS 40A 40QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 40-VFQFN Exposed Pad.
In Stock: 6,501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC-DC Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | DrMOS |
| Rds On (Typ) | - |
| Current - Output / Channel | 40A |
| Current - Peak Output | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 4.5V ~ 18V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSD97370AQ5M | Texas Instruments | IC SYNC BUCK NEXFET 22SON | 94% | View |
| CSD97370Q5M | Texas Instruments | IC SYNC BUCK NEXFET 22SON | 94% | View |
| CSD96370Q5M | Texas Instruments | IC SYNC BUCK NEXFET 22SON | 94% | View |
| FDMF6706C | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 92% | View |
| SIC779CD-T1-GE3 | Vishay Siliconix | IC BUCK ADJ 40A 40MLP | 92% | View |
| FDMF6705B | onsemi | MOSFET DRMOS 40A 300KHZ 40PQFN | 90% | View |
Submit your RFQ for ISL99140IRZ-T and get a quote within 24 hours.
