Renesas Electronics America Inc

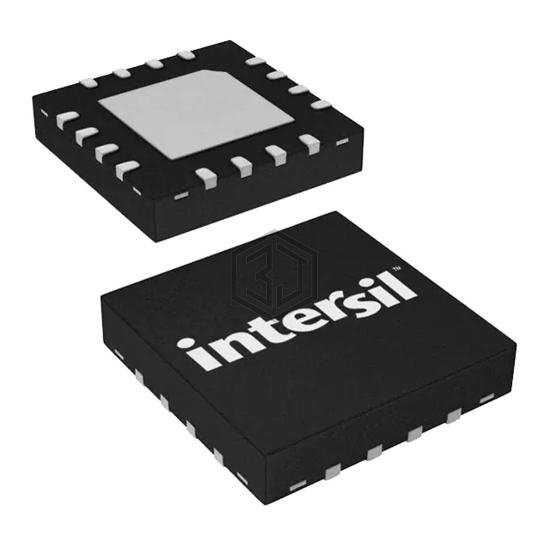

IC SWITCH QUAD SPDT 16QFN
ISL8499IR-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 4.
In Stock: 2,914
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 250mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 23ns |
| -3db Bandwidth | - |
| Charge Injection | -120pC |
| Channel Capacitance (CS(off), CD(off)) | 106pF |
| Current - Leakage (IS(off)) (Max) | 50nA |
| Crosstalk | -98dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
ISL8499IR-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4780EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TSSOP | 65% | View |
| ISL84782IRZ | Intersil | ULTRA LOW ON-RESISTANCE, LOW-VOL | 64% | View |
| MAX4736EUB+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 57% | View |
| MAX4736ETC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12TQFN | 57% | View |
| 74HCT4852D,118 | Nexperia USA Inc. | IC MUX/DEMUX 4:1 210 OHM 16SO | 50% | View |
| 74HCT4852PW-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4:1 16TSSOP | 50% | View |
Submit your RFQ for ISL8499IR-T and get a quote within 24 hours.
