Renesas Electronics America Inc
IC SWITCH DUAL SPST 8DIP

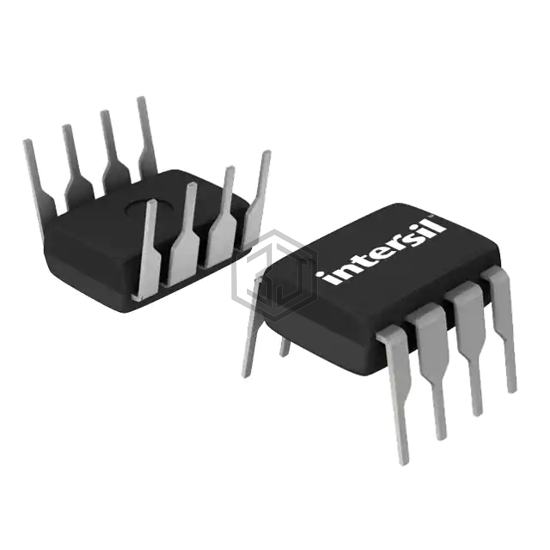

ISL84543CPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPST 8DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 8-DIP (0.300", 7.62mm), number of circuits 2.
In Stock: 7,198
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
ISL84543CPZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84543IP | Intersil | SPST ANALOG SWITCH, 2 FUNC, 1 CH | 100% | View |
| ISL84541CP | Intersil | SPST ANALOG SWITCH, 2 FUNC, 1 CH | 100% | View |
| MAX4542CPA | Analog Devices Inc./Maxim Integrated | IC SW DUAL ANLG SPST N/C 8-DIP | 100% | View |
| MAX4544CPA | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8DIP | 91% | View |
| DG411HSDJ-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-DIP | 56% | View |
| DG413HSDJ-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-DIP | 56% | View |
Submit your RFQ for ISL84543CPZ and get a quote within 24 hours.
