Renesas Electronics America Inc

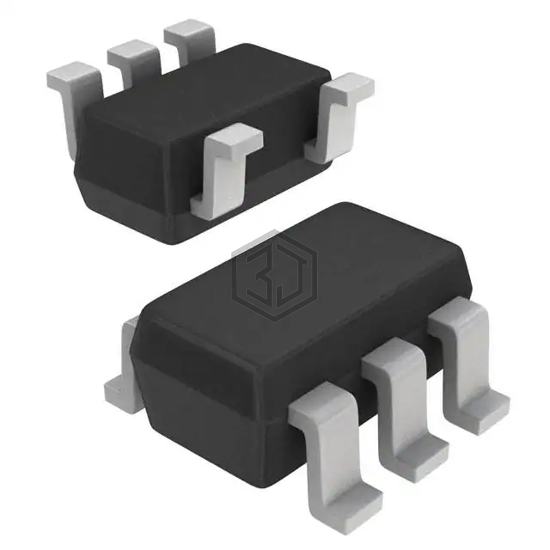

IC SWITCH SPST SOT23-5
ISL84514IHZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH SPST SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, number of circuits 1.
In Stock: 7,742
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 20Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 2.4V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | 5-SOT |
ISL84514IHZ-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84515IBZ | Renesas Electronics America Inc | IC SWITCH SPST 8SOIC | 100% | View |
| MAX4561EUT-T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-6 | 83% | View |
| MAX382EWN+ | Analog Devices Inc./Maxim Integrated | IC MUX 8CH DUAL 4CH 18SOIC | 76% | View |
| ADG1401BRMZ | Analog Devices Inc. | IC SWITCH SPST 1OHM RON 8MSOP | 68% | View |
| MAX4632ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 16SOIC | 63% | View |
| MAX309EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 16TSSOP | 60% | View |
Submit your RFQ for ISL84514IHZ-T and get a quote within 24 hours.
