Renesas Electronics America Inc

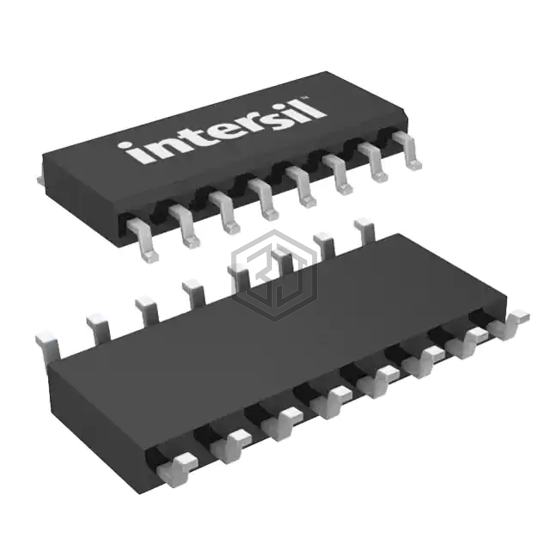

IC SWITCH QUAD SPST 16SOIC
ISL8393IBZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 4.
In Stock: 511
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 130ns, 75ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC (Max) |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -89dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
ISL8393IBZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUXHS4412IRUAR | Texas Instruments | IC MULTIPLEXER | 97% | View |
| MAX391ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 94% | View |
| MAX393ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 94% | View |
| MAX392ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 94% | View |
| ALD4211SCL | Advanced Linear Devices Inc. | IC SW ANLG QUAD SPST 16SOIC | 94% | View |
| ADG1213YCPZ-500RL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 86% | View |
Submit your RFQ for ISL8393IBZ and get a quote within 24 hours.
