Renesas Electronics America Inc
DC DC CONVERTER 0.5-5V

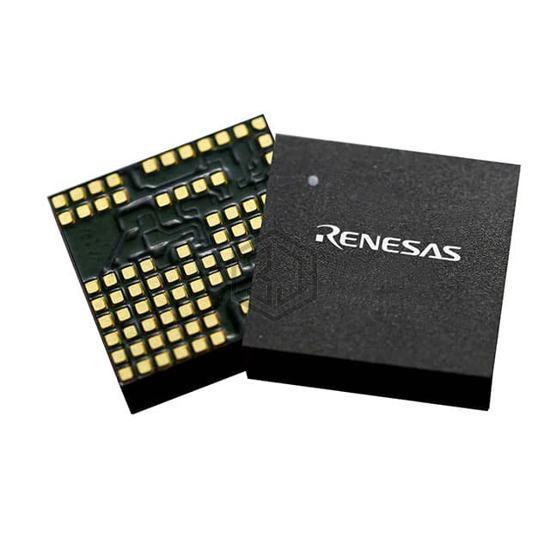

ISL8212MFRZ-T1 is a DC DC Converters manufactured by Renesas Electronics America Inc. DC DC CONVERTER 0.5-5V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 83-SMD Module, current - output (max) 15A.
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output 1 | 0.5 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 83-SMD Module |
| Size / Dimension | 0.47" L x 0.43" W x 0.21" H (12.0mm x 11.0mm x 5.3mm) |
| Supplier Device Package | 83-HDA Module (12x11) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for ISL8212MFRZ-T1 and get a quote within 24 hours.
