Renesas Electronics America Inc
40V 4-SW SYNCH BUCK-BOOST PWM

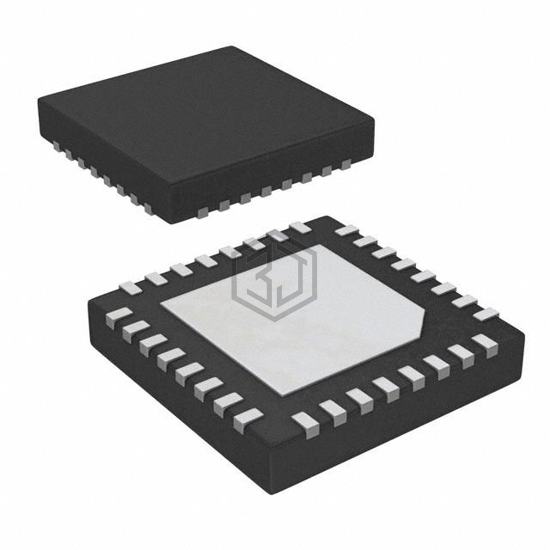

ISL81401FRZ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. 40V 4-SW SYNCH BUCK-BOOST PWM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 32-VFQFN Exposed Pad.
In Stock: 9,160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM Signal |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 90kHz ~ 650kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Power Good |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL81401AFRZ-T7A | Renesas Electronics America Inc | 40V 4-SW SYNCH BUCK-BOOST PWM CO | 100% | View |
| ISL81401AFRZ-T | Renesas Electronics America Inc | 40V 4-SW SYNCH BUCK-BOOST PWM | 100% | View |
| ISL81601FRZ-T | Renesas Electronics America Inc | SWITCH SYNCHRONOUS BUCK BOOST | 100% | View |
| ISL81401AFRZ | Renesas Electronics America Inc | 40V 4-SW SYNCH BUCK-BOOST PWM | 100% | View |
| ISL81601FRZ | Renesas Electronics America Inc | SWITCH SYNCHRONOUS BUCK BOOST | 100% | View |
| ISL81601FRZ-T7A | Renesas Electronics America Inc | SWITCH SYNCH BUCK-BOOST PWM | 100% | View |
Submit your RFQ for ISL81401FRZ and get a quote within 24 hours.
