Renesas Electronics America Inc
IC REG CTRLR BUCK 32QFN

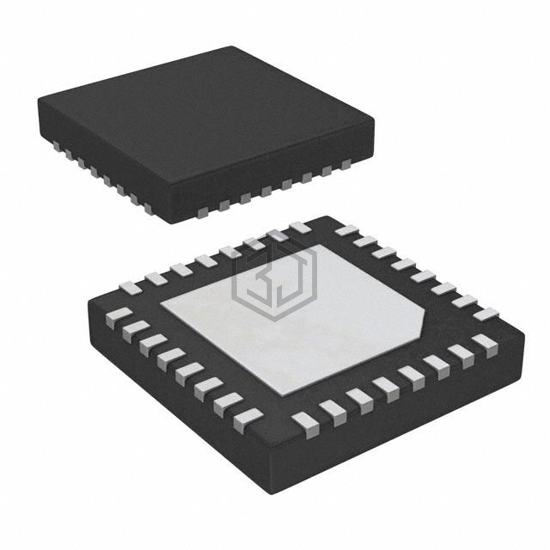

ISL8120IRZ-TEC is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 22V, package / case 32-VFQFN Exposed Pad.
In Stock: 8,727
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 22V |
| Frequency - Switching | 150kHz ~ 1.5MHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Power Good |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
ISL8120IRZ-TEC is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL8120IRZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 32QFN | 100% | View |
| RT8811BGQW | Richtek USA Inc. | IC PWM CTRLR BUCK WQFN-24 | 95% | View |
| ISL8121IRZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 24QFN | 94% | View |
| MAX1654EEE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16QSOP | 88% | View |
| MAX1655EEE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16QSOP | 80% | View |
| MAX1655ESE+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16SOIC | 80% | View |
Submit your RFQ for ISL8120IRZ-TEC and get a quote within 24 hours.
