Renesas Electronics America Inc
IC GATE DRVR HALF-BRIDG 14HTSSOP

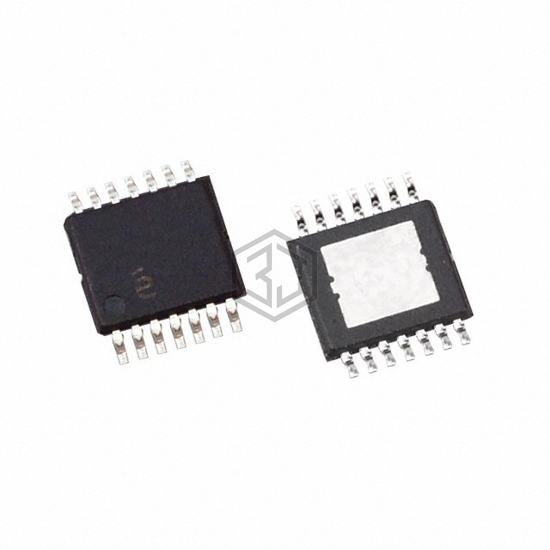

ISL78434AVEZ-T7A is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDG 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 140°C (TJ), voltage - supply 8V ~ 18V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 5,176
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 18V |
| Logic Voltage - VIL, VIH | 1V, 2.1V |
| Current - Peak Output (Source, Sink) | 3A, 4A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 100 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27201DDA | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOPWR | 93% | View |
| UCC27201ADPRR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 93% | View |
| MCP14E9T-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 86% | View |
| UCC27200ADRCR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 9VSON | 84% | View |
| TC4423VMF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 80% | View |
| TC4425VOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 80% | View |
Submit your RFQ for ISL78434AVEZ-T7A and get a quote within 24 hours.
