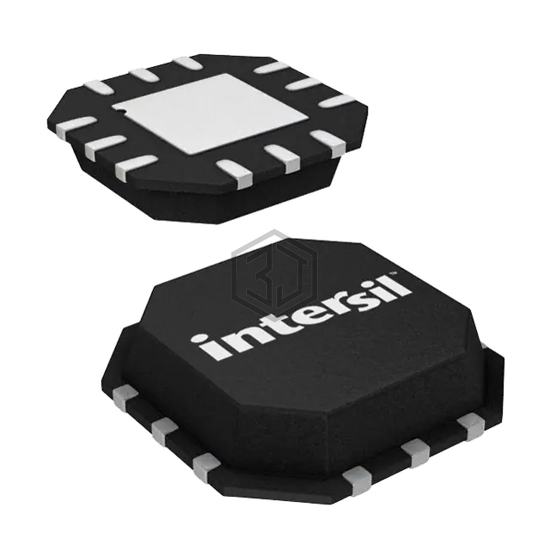

Renesas Electronics America Inc
IC GATE DRVR HALF-BRIDGE 12QFN
ISL6700IRZ-T is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDGE 12QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 15V, package / case 12-VQFN Exposed Pad.
In Stock: 2,430
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 80 V |
| Rise / Fall Time (Typ) | 5ns, 5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VQFN Exposed Pad |
| Supplier Device Package | 12-QFN (4x4) |
ISL6700IRZ-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6700IRZ | Intersil | HALF BRIDGE BASED MOSFET DRIVER | 100% | View |
| ISL6700IBZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| ISL6700IBZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| HIP4082IBZT | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 16SOIC | 82% | View |
| HIP4082IBZTR5676 | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 16SO | 82% | View |
| HIP4082IBZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 16SOIC | 82% | View |
Submit your RFQ for ISL6700IRZ-T and get a quote within 24 hours.
