Renesas Electronics America Inc
IC REG CTRLR BUCK 32QFN

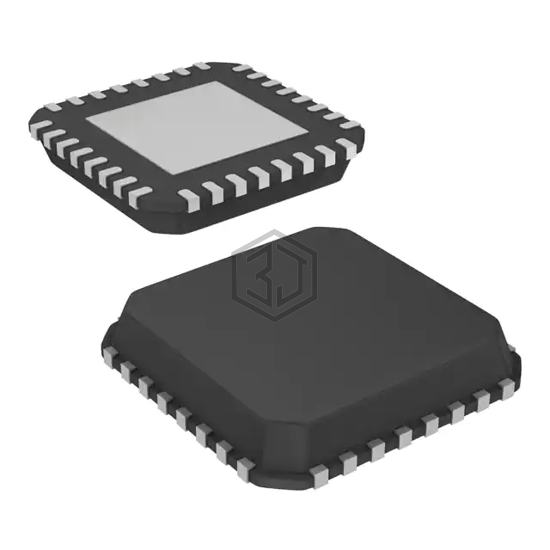

ISL6569ACR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 32QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 32-VFQFN Exposed Pad.
In Stock: 5,827
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Frequency - Switching | 80kHz ~ 1MHz |
| Duty Cycle (Max) | 75% |
| Synchronous Rectifier | - |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
ISL6569ACR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6569CB-T | Intersil | SWITCHING CONTROLLER | 100% | View |
| ISL6569ACB | Renesas Electronics America Inc | IC REG CTRLR BUCK 24SOIC | 100% | View |
| ISL6565ACB-T | Intersil | SWITCHING CONTROLLER | 91% | View |
| ISL6565ACVZ-T | Intersil | SWITCHING CONTROLLER | 91% | View |
| ISL6565BCRZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 28QFN | 91% | View |
| ISL6316CRZ-T | Intersil | SWITCHING CONTROLLER | 84% | View |
Submit your RFQ for ISL6569ACR and get a quote within 24 hours.
