Renesas Electronics America Inc
IC REG CTRLR BUCK 20QFN

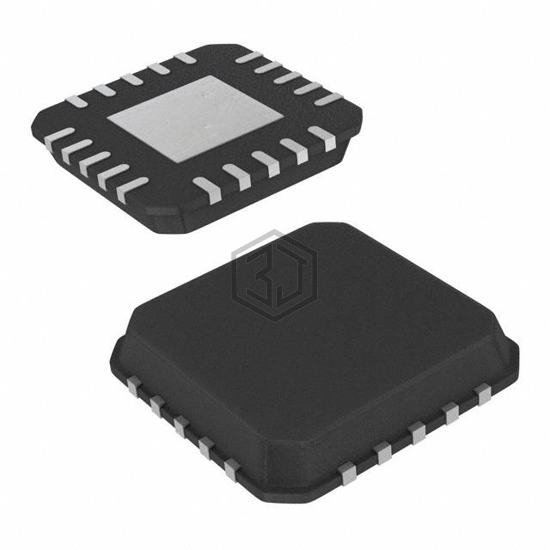

ISL6558IR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 20-VQFN Exposed Pad.
In Stock: 1,048
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 4 |
| Output Phases | 4 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Frequency - Switching | 80kHz ~ 1.5MHz |
| Duty Cycle (Max) | 75% |
| Synchronous Rectifier | - |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VQFN Exposed Pad |
| Supplier Device Package | 20-QFN (5x5) |
ISL6558IR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6564IRZ | Intersil | SWITCHING CONTROLLER | 100% | View |
| ISL6558IBZ | Intersil | SWITCHING CONTROLLER | 100% | View |
| ISL6564IR | Renesas Electronics America Inc | IC REG CTRLR BUCK 40QFN | 100% | View |
| ISL6564IR-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 40QFN | 100% | View |
| ISL6316IRZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 40QFN | 100% | View |
| ISL6327IRZ | Intersil | SWITCHING CONTROLLER, VOLTAGE-MO | 91% | View |
Submit your RFQ for ISL6558IR and get a quote within 24 hours.
