Renesas Electronics America Inc
IC REG CTRLR BUCK 20QSOP

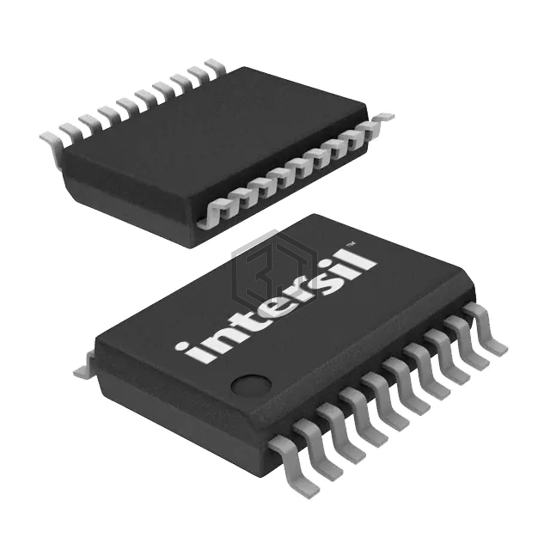

ISL6420AIAZ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 5.6V ~ 28V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 8,813
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 5.6V ~ 28V |
| Frequency - Switching | 100kHz ~ 1.4MHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
ISL6420AIAZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6420BIRZ-T7A | Renesas Electronics America Inc | IC REG CTRLR BUCK 20QFN | 100% | View |
| XRP6124HVESTR0.5-F | MaxLinear, Inc. | IC REG CTRLR BUCK SOT23-5 | 98% | View |
| LTC7803JUD#TRPBF | Analog Devices Inc. | LOW IQ SYNCHRONOUS BUCK CONTROLL | 98% | View |
| ISL8117FRZ-T7A | Renesas Electronics America Inc | IC REG CTRLR BUCK 16QFN | 98% | View |
| TPS40170MRGYTEP | Texas Instruments | IC REG CTRLR BUCK 20VQFN | 98% | View |
| MAX17558ATJ+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 32TQFN | 82% | View |
Submit your RFQ for ISL6420AIAZ and get a quote within 24 hours.
