Renesas Electronics America Inc

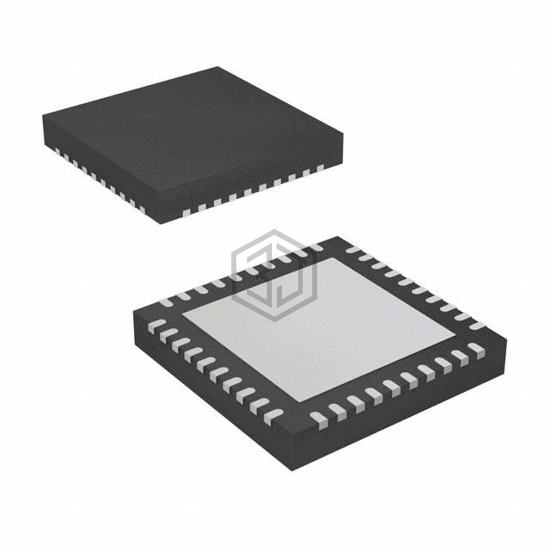

IC REG CTRLR BUCK 40QFN
ISL6306CRZ-TK is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 40QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 40-VFQFN Exposed Pad.
In Stock: 2,893
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 4 |
| Output Phases | 4 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Frequency - Switching | 80kHz ~ 1MHz |
| Duty Cycle (Max) | 66.7% |
| Synchronous Rectifier | - |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
ISL6306CRZ-TK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6564IRZ | Intersil | SWITCHING CONTROLLER | 100% | View |
| ISL6559CRZ-TR5265 | Renesas Electronics America Inc | IC REG CTRLR BUCK 32QFN | 100% | View |
| ISL6316IRZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 40QFN | 100% | View |
| ISL6565BCB | Intersil | SWITCHING CONTROLLER | 94% | View |
| ISL6565BCBZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 28SOIC | 94% | View |
| ISL6307CRZ-T | Intersil | SWITCHING CONTROLLER, VOLTAGE-MO | 91% | View |
Submit your RFQ for ISL6306CRZ-TK and get a quote within 24 hours.
