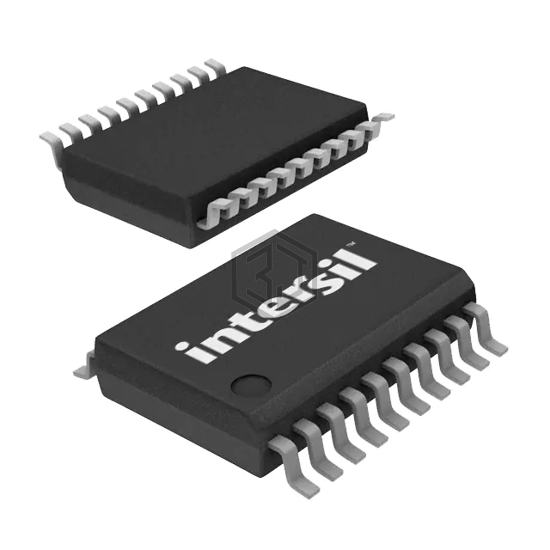

Renesas Electronics America Inc
IC REG CTRLR BUCK 20SSOP
ISL6223CAZA is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 20SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 5,229
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Frequency - Switching | 50kHz ~ 1.5MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | - |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
ISL6223CAZA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6553CB | Intersil | SWITCHING CONTROLLER | 100% | View |
| HIP6302CBZ | Intersil | MICROPROCESSOR CORE VOLTAGE REG | 100% | View |
| ISL6553CBZA-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 16SOIC | 100% | View |
| ISL6553CBZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 16SOIC | 100% | View |
| HIP6302CBZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 16SOIC | 100% | View |
| HIP6311ACBZA | Renesas Electronics America Inc | IC REG CTRLR BUCK 20SOIC | 84% | View |
Submit your RFQ for ISL6223CAZA and get a quote within 24 hours.
