Renesas Electronics America Inc

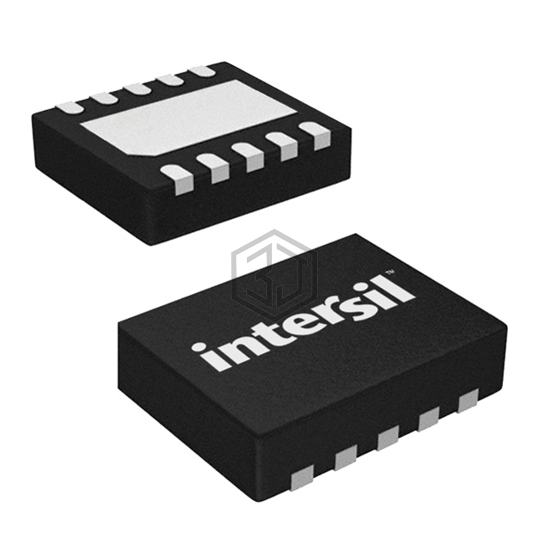

IC SWITCH DUAL SPST 10TDFN
ISL54061IRTZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPST 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 3,220
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 520mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 6.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 10ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF |
| Current - Leakage (IS(off)) (Max) | 8.13nA |
| Crosstalk | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL54064IRTZ-T | Renesas Electronics America Inc | IC SWITCH SPDT DUAL 10TDFN | 100% | View |
| ISL54063IRTZ | Renesas Electronics America Inc | IC SWITCH SPDT DUAL 10TDFN | 100% | View |
| ISL54061IRUZ-T | Renesas Electronics America Inc | IC SWITCH DUAL SPST 10UTQFN | 100% | View |
| TS5A3159QDBVRQ1 | Texas Instruments | IC ANLG SW SPDT SOT23-6 | 72% | View |
| HI-8195PCIF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16CSP | 65% | View |
| HI-8195PSIF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 65% | View |
Submit your RFQ for ISL54061IRTZ and get a quote within 24 hours.
