Renesas Electronics America Inc
IC SWITCH QUAD SPDT 20QFN

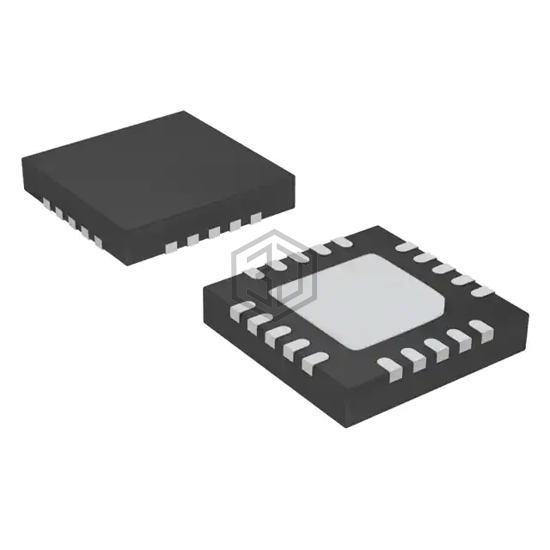

ISL43240IR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPDT 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-VFQFN Exposed Pad, number of circuits 4.
In Stock: 5,332
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 65ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC (Max) |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -92dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
ISL43240IR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43240IRZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPDT 20QFN | 100% | View |
| ISL43145IRZ | Intersil | SPST, 4 FUNC, 1 CHANNEL, CMOS | 91% | View |
| ISL43143IR-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16QFN | 91% | View |
| ISL43144IR | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16QFN | 91% | View |
| ADG613SRUZ-EP | Analog Devices Inc. | IC SWITCH SPST 115 OHM 16TSSOP | 83% | View |
| DG271BDY-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16SOIC | 72% | View |
