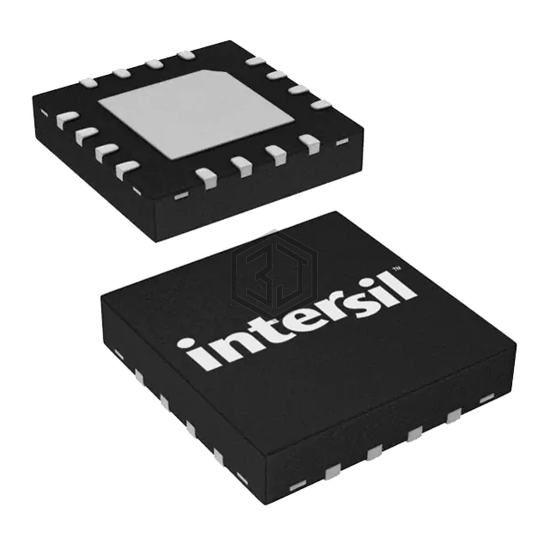

Renesas Electronics America Inc
IC SWITCH QUAD SPST 16QFN
ISL43140IRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 4.
In Stock: 6,306
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 65Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.6V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
ISL43140IRZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4737EUD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 83% | View |
| MAX4522EEE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16QSOP | 81% | View |
| MAX4521EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 81% | View |
| ISL84521IVZ | Intersil | SPST ANALOG SWITCH, 4 FUNC, 1 CH | 81% | View |
| MAX4521EEE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16QSOP | 81% | View |
| MAX4722EBL+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 9UCSP | 75% | View |
Submit your RFQ for ISL43140IRZ and get a quote within 24 hours.
