Renesas Electronics America Inc
IC GATE DRVR HALF-BRIDGE 12DFN

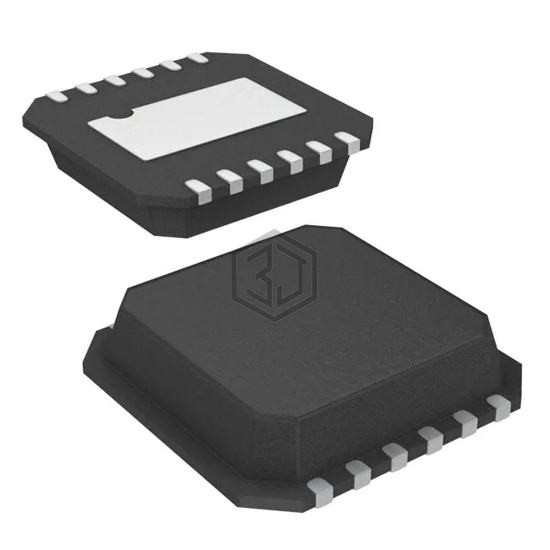

ISL2111AR4Z-T is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDGE 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 12-VFDFN Exposed Pad.
In Stock: 1,619
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 1.4V, 2.2V |
| Current - Peak Output (Source, Sink) | 3A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V |
| Rise / Fall Time (Typ) | 9ns, 7.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27201ADRCR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 9VSON | 92% | View |
| UCC27201ADRMR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8VSON | 92% | View |
| FAN3229CMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 87% | View |
| FAN3224TMNTXG | onsemi | DUAL 4A LOW-SIDE DRIVE | 86% | View |
| LM5111-1MX/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 77% | View |
| LM5100AMRX/NOPB | National Semiconductor | LM5100A 3A HIGH VOLTAGE HIGH-SID | 77% | View |
Submit your RFQ for ISL2111AR4Z-T and get a quote within 24 hours.
