Renesas Electronics America Inc
IC GATE DRVR HALF-BRIDGE 12DFN

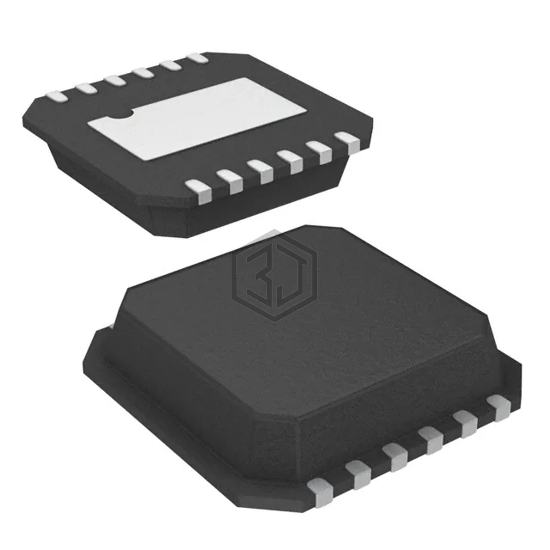

ISL2111AR4Z is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDGE 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 12-VFDFN Exposed Pad.
In Stock: 7,294
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 1.4V, 2.2V |
| Current - Peak Output (Source, Sink) | 3A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V |
| Rise / Fall Time (Typ) | 9ns, 7.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27201DRMT | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8VSON | 92% | View |
| UCC27200ADDAR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOPWR | 90% | View |
| UCC27200DRMT | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8VSON | 90% | View |
| FAN3227CMPX | onsemi | IC GATE DRVR LOW-SIDE 8MLP | 87% | View |
| FAN3227TMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 82% | View |
| MCP14A0304-E/MNY | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8TDFN | 82% | View |
Submit your RFQ for ISL2111AR4Z and get a quote within 24 hours.
