Renesas Electronics America Inc
IC REG CHARGE PUMP INV 45MA 8DIP

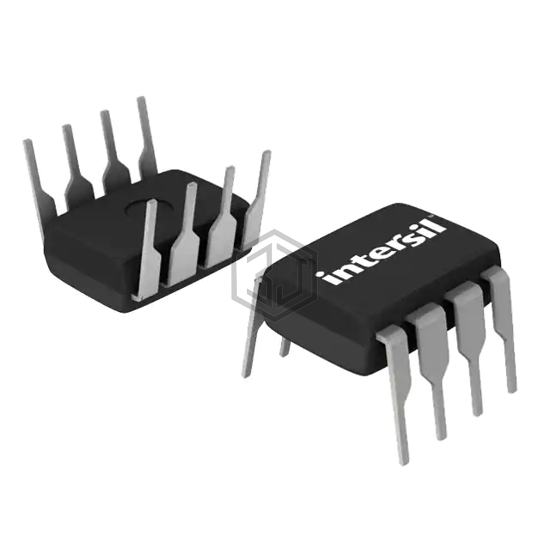

ICL7660CPAZ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Renesas Electronics America Inc. IC REG CHARGE PUMP INV 45MA 8DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 8-DIP (0.300", 7.62mm), current - output 45mA.
In Stock: 2,561
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Voltage - Output (Max) | - |
| Current - Output | 45mA |
| Frequency - Switching | 10kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ICL7660SCPAZ | Renesas Electronics America Inc | IC REG CHARGE PUMP INV 45MA 8DIP | 94% | View |
| ICL7660CPA+ | Analog Devices Inc./Maxim Integrated | IC REG CHARGE PUMP INV 20MA 8DIP | 88% | View |
| MAX1044EPA+ | Analog Devices Inc./Maxim Integrated | IC REG CHARGE PUMP INV 20MA 8DIP | 88% | View |
| ICL7660EPA+ | Analog Devices Inc./Maxim Integrated | IC REG CHARGE PUMP INV 20MA 8DIP | 88% | View |
| TC7662BEPA | Microchip Technology | IC REG CHARGE PUMP INV 20MA 8DIP | 75% | View |
| TC7662BCPA | Microchip Technology | IC REG CHARGE PUMP INV 20MA 8DIP | 75% | View |
Submit your RFQ for ICL7660CPAZ and get a quote within 24 hours.
