Renesas Electronics America Inc
100V/4A PWM INPUT HALF-BRIDGE DR

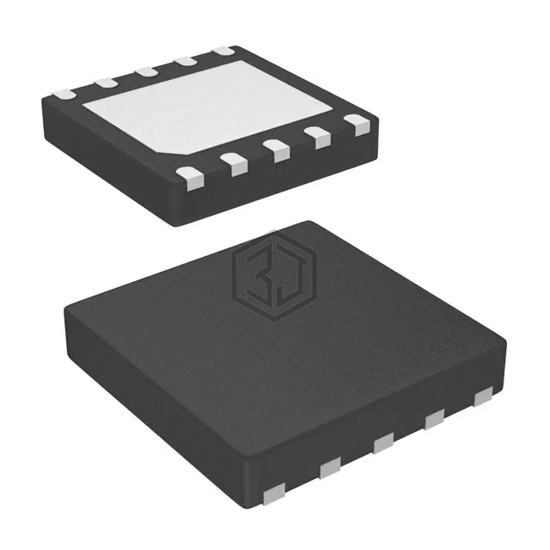

HIP2210FRTZ-T is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. 100V/4A PWM INPUT HALF-BRIDGE DR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 6V ~ 18V, package / case 10-WDFN Exposed Pad.
In Stock: 1,807
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 6V ~ 18V |
| Logic Voltage - VIL, VIH | 1.47V, 1.84V |
| Current - Peak Output (Source, Sink) | 3A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 115 V |
| Rise / Fall Time (Typ) | 435ns, 365ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV51511PDR2G | onsemi | IC GATE DRVR HI/LOW SIDE 8SOIC | 76% | View |
| MAX5075AAUA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 71% | View |
| MAX5077AUD+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 14TSSOP | 71% | View |
| MAX5075CAUA | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 71% | View |
| LTC4449EDCB#TRMPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8DFN | 61% | View |
| LM27222SD/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 59% | View |
