Renesas Electronics America Inc

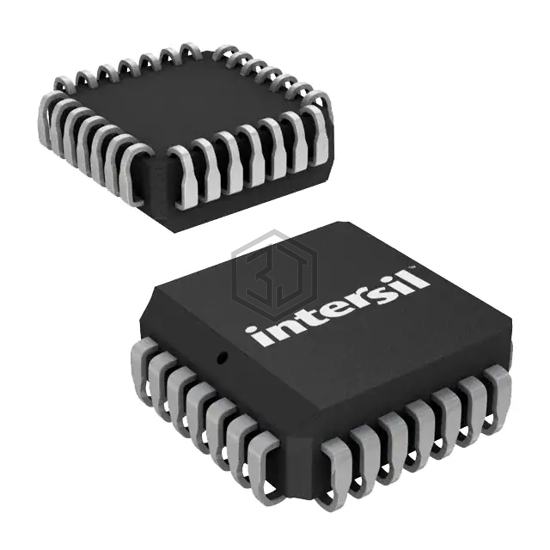

IC MULTIPLEXER 16X1 28PLCC
HI4P0546-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 16X1 28PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 28-LCC (J-Lead), number of circuits 1.
In Stock: 7,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.8kOhm |
| Channel-to-Channel Matching (ΔRon) | 126Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI9P0548-5Z | Renesas Electronics America Inc | IC MULTIPLEXER 8X1 16SOIC | 100% | View |
| MAX358CWE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 64% | View |
| MAX358EWE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 64% | View |
| MAX4692EGE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16QFN | 63% | View |
| HI9P0381-5 | Harris Corporation | CMOS ANALOG SWITCH | 57% | View |
| HI9P0302-5 | Harris Corporation | CMOS ANALOG SWITCH | 57% | View |
Submit your RFQ for HI4P0546-5Z and get a quote within 24 hours.
