Renesas Electronics America Inc

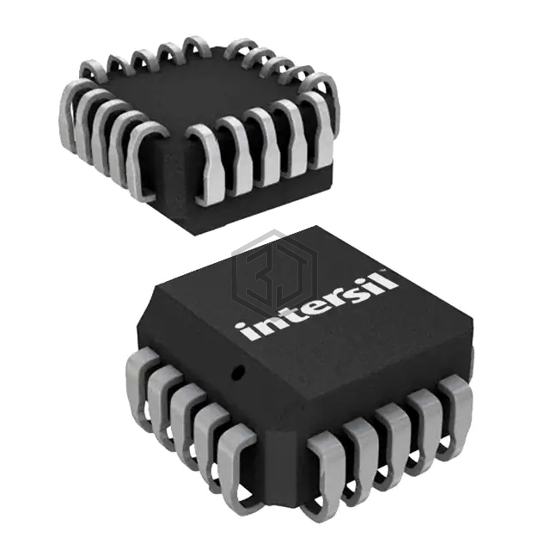

IC MULTIPLEXER DUAL 4X1 20PLCC
HI4P0509-5Z96 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER DUAL 4X1 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 20-LCC (J-Lead), number of circuits 2.
In Stock: 5,742
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
HI4P0509-5Z96 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG309CY | Harris Corporation | QUAD, SPST ANALOG SWITCH | 63% | View |
| DG507BEQ-T1-GE3 | Vishay Siliconix | IC MUX ANA DUAL 16/8CH 28TSSOP | 56% | View |
| MAX4621CSE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SOIC | 56% | View |
| MAX4621CSE | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SOIC | 56% | View |
| DG441CY+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 50% | View |
| MAX364ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 50% | View |
Submit your RFQ for HI4P0509-5Z96 and get a quote within 24 hours.
