Renesas Electronics America Inc

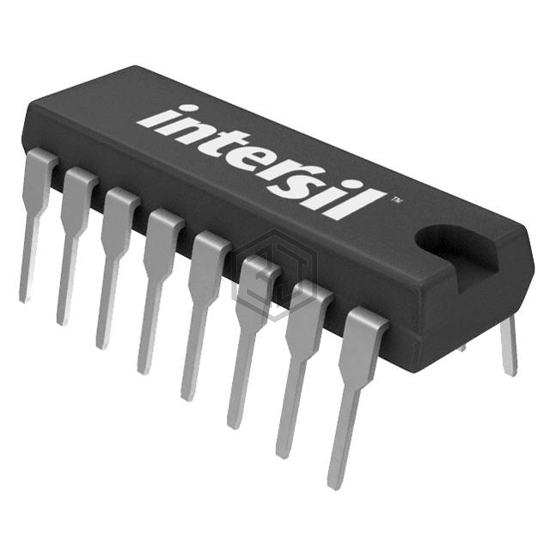

IC MULTIPLEXER 8X1 16DIP
HI3-0548-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 8X1 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 1.
In Stock: 5,395
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.8kOhm |
| Channel-to-Channel Matching (ΔRon) | 126Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
HI3-0548-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0548-9 | Harris Corporation | ANALOG MUX, 8 CHANNEL | 89% | View |
| DG301AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 50 OHM 14DIP | 70% | View |
| MAX4509CPE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16DIP | 63% | View |
| DG390AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT DUAL 16CDIP | 59% | View |
| DG303ABK | Analog Devices Inc./Maxim Integrated | TTL COMPATIBLE CMOS ANALOG SWITC | 59% | View |
| HI3-0300-5 | Harris Corporation | DUAL SPST CMOS ANALOG SWITCH | 57% | View |
Submit your RFQ for HI3-0548-5 and get a quote within 24 hours.
