Renesas Electronics America Inc

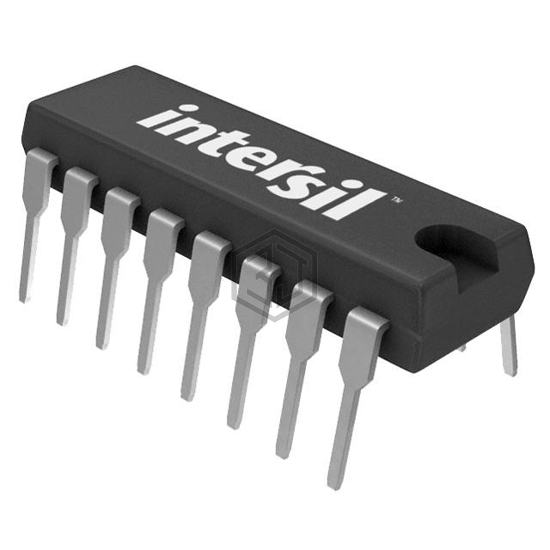

IC MULTIPLEXER DUAL 4X1 16DIP
HI3-0509A-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER DUAL 4X1 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 2.
In Stock: 2,004
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.8kOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0547-5 | Renesas Electronics America Inc | IC MULTIPLEXER DUAL 8X1 28DIP | 100% | View |
| HI3-0549-9 | Harris Corporation | QUAD DIFFERENTIAL MUX | 100% | View |
| DG185BP | Harris Corporation | DUAL DPST HIGH-SPEED DRIVER | 73% | View |
| DG302BDJ | Vishay Siliconix | IC SWITCH CMOS 14DIP | 70% | View |
| DG211BDJ-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16DIP | 53% | View |
| ADG201AKNZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16DIP | 53% | View |
Submit your RFQ for HI3-0509A-5Z and get a quote within 24 hours.
