Renesas Electronics America Inc
IC SWITCH QUAD SPST 16DIP

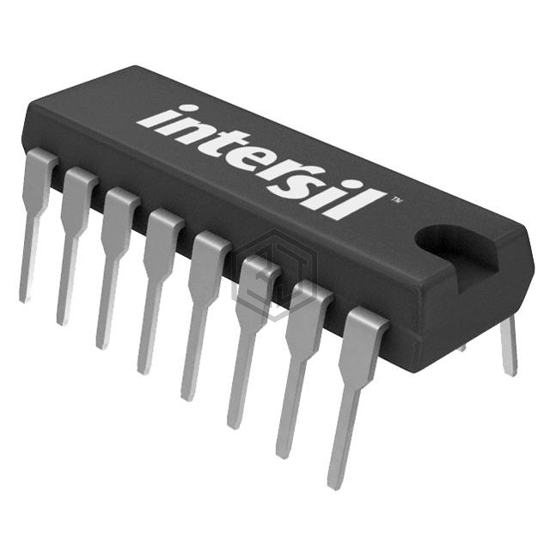

HI3-0201-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.
In Stock: 8,625
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 240ns, 500ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0201-5 | Harris Corporation | SPST, 4 FUNC, 1 CHANNEL, CMOS, P | 100% | View |
| MAX362CPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 69% | View |
| ALD4202MPCL | Advanced Linear Devices Inc. | IC SW ANLG QUAD SPST 16DIP | 66% | View |
| ALD4201PCL | Advanced Linear Devices Inc. | IC SW ANLG QUAD SPST 16DIP | 66% | View |
| HI1-0200-7 | Harris Corporation | DUAL SPST, CMOS ANALOG SWITCH | 64% | View |
| MAX314EPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 58% | View |
Submit your RFQ for HI3-0201-5Z and get a quote within 24 hours.
