Renesas Electronics America Inc

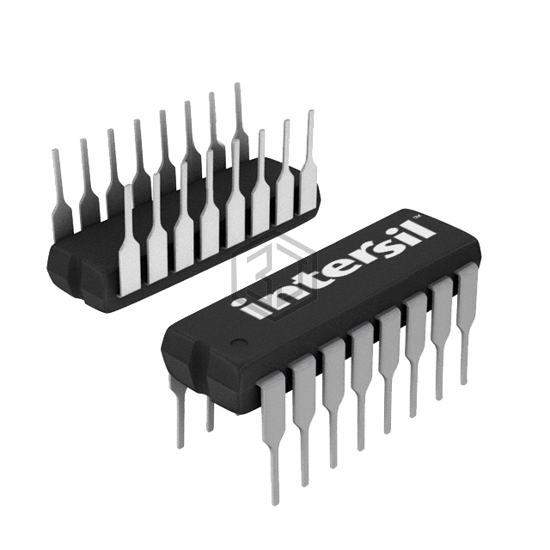

IC SWITCH DUAL SPDT 16CDIP
HI1-0390-2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 2.
In Stock: 5,817
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V ~ 34V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | - |
| Charge Injection | 30pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
HI1-0390-2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG384ACK | Analog Devices Inc./Maxim Integrated | IC SW CMOS ANLG DUAL DPST 16-DIP | 98% | View |
| HI1-0302/883 | Harris Corporation | DUAL DPST CMOS ANALOG SWITCH | 75% | View |
| HI2-0300-2 | Harris Corporation | DUAL SPST CMOS ANALOG SWITCH | 75% | View |
| 5962-8767301IA | Harris Corporation | DUAL SPST SWITCH | 68% | View |
| HI1-0387-2 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 67% | View |
| HI1-0387/883 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 50% | View |
Submit your RFQ for HI1-0390-2 and get a quote within 24 hours.
