Renesas Electronics America Inc

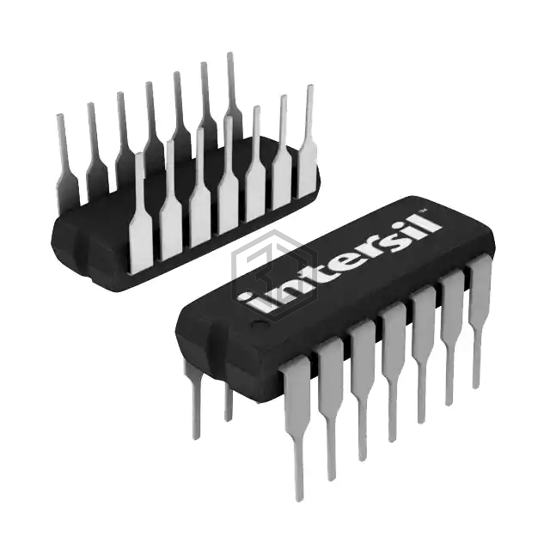

IC SWITCH DUAL SPDT 14CDIP
HI1-0303-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 14CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 14-CDIP (0.300", 7.62mm), number of circuits 2.
In Stock: 1,463
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V ~ 34V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | - |
| Charge Injection | 30pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CERDIP |
HI1-0303-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0303-5Z | Renesas Electronics America Inc | IC SWITCH DUAL DPST 14DIP | 100% | View |
| DG300ACJ | Harris Corporation | CMOS ANALOG SWITCH | 98% | View |
| DG301ACJ | Harris Corporation | SPDT, 1 FUNC, 1 CHANNEL, CMOS, P | 87% | View |
| DG302AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH DPDT 50 OHM 14CDIP | 73% | View |
| ADG509AKNZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16DIP | 56% | View |
| IH5142CPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 16DIP | 52% | View |
