Renesas Electronics America Inc
IC MULTIPLEXER 8X1 16DIP

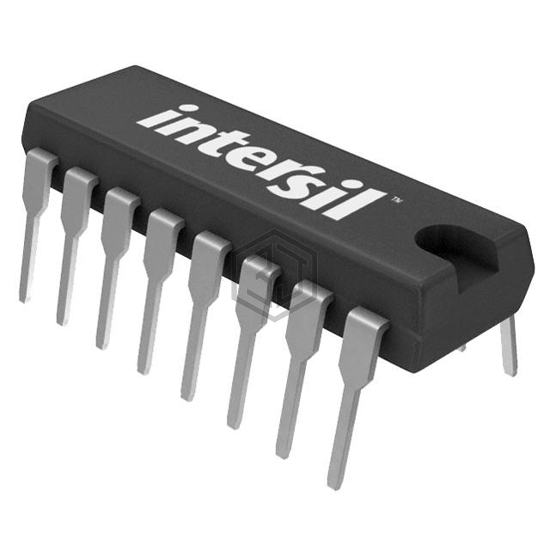

DG508ACJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 8X1 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 1.
In Stock: 8,590
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
DG508ACJZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7506SQ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 100% | View |
| DG528AK/883B | Analog Devices Inc./Maxim Integrated | IC MUX 8:1 400 OHM 18DIP | 100% | View |
| DG506AAK/883 | Vishay Siliconix | IC MUX ANALOG SINGLE 8CH 16DIP | 97% | View |
| MAX388CPN | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 18DIP | 89% | View |
| MAX389CPN+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 18DIP | 78% | View |
| MAX328EPE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16DIP | 59% | View |
Submit your RFQ for DG508ACJZ and get a quote within 24 hours.
