Renesas Electronics America Inc
IC SWITCH QUAD SPST 16DIP

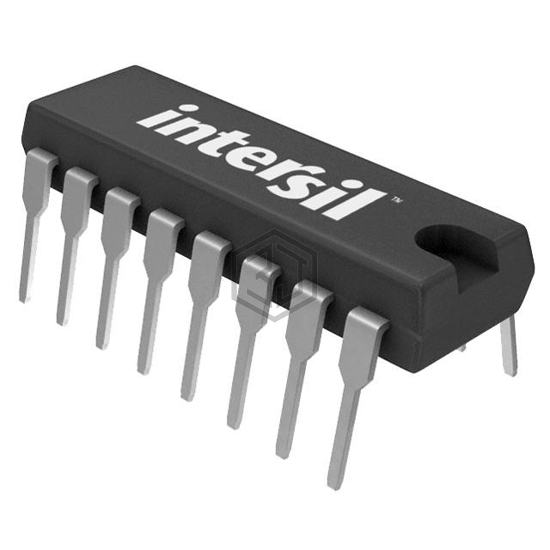

DG441DJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.
In Stock: 6,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V ~ 34V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 250ns, 120ns |
| -3db Bandwidth | - |
| Charge Injection | -1pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG441AK/883 | Harris Corporation | QUAD SPST ANALOG SWITCH | 100% | View |
| MAX365EPE+ | Analog Devices Inc./Maxim Integrated | IC ANALOG SW SPST QUAD 16DIP | 91% | View |
| MAX362EPE | Analog Devices Inc./Maxim Integrated | IC SW QUAD ANLG PREC SPST 16-DIP | 91% | View |
| DG509BEJ-E3 | Vishay Siliconix | IC MUX ANA DUAL 8/4CH 16DIP | 68% | View |
| DG508BEJ-E3 | Vishay Siliconix | IC MUX ANA DUAL 8/4CH 16DIP | 60% | View |
| HI1-0305/883 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 57% | View |
Submit your RFQ for DG441DJZ and get a quote within 24 hours.
