Renesas Electronics America Inc

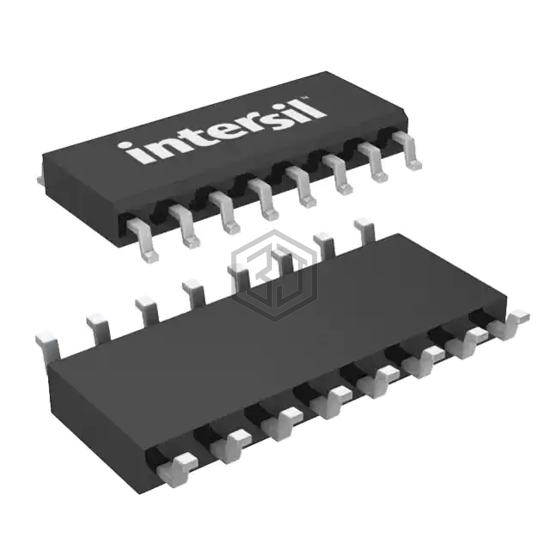

IC SWITCH DUAL SPST 16SOIC
DG401DYZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPST 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 2.
In Stock: 149
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 34V |
| Voltage - Supply, Dual (V±) | ±5V ~ 17V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 60pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
DG401DYZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG409DY-T1-E3 | Vishay Siliconix | IC MULTIPLEXER DUAL 4X1 16SOIC | 98% | View |
| MAX301ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SOIC | 91% | View |
| MAX4632ESE-T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 16SOIC | 88% | View |
| ADG1411YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 82% | View |
| DG408DY+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 74% | View |
| MAX4524EUB+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 10UMAX | 58% | View |
Submit your RFQ for DG401DYZ and get a quote within 24 hours.
