Renesas Electronics America Inc
IC SWITCH QUAD SPST 16DIP

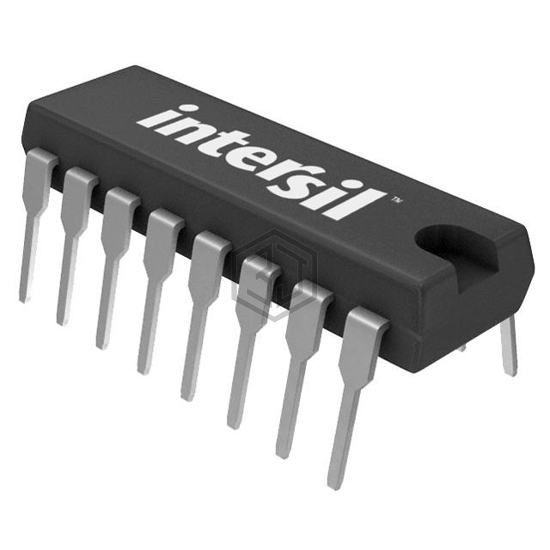

DG211CJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.
In Stock: 7,509
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 175Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 460ns, 450ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
DG211CJZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG211CJ | Harris Corporation | SPST, 4 FUNC, 1 CHANNEL, CMOS, P | 100% | View |
| SW7510AQ/883C | Analog Devices Inc. | QUAD SPST JFET SWITCH | 71% | View |
| SW7510EQ | Analog Devices Inc. | QUAD SPST JFET SWITCH | 71% | View |
| SW7511EQ | Analog Devices Inc. | QUAD SPST JFET SWITCH | 71% | View |
| SW7511AQ | Analog Devices Inc. | QUAD SPST JFET SWITCH | 71% | View |
| HI1-0507A-8 | Harris Corporation | 4-CHANNEL ANALOG MUX | 63% | View |
Submit your RFQ for DG211CJZ and get a quote within 24 hours.
