Renesas Electronics America Inc
SCR 800V 3.1A MP3A
CR2AS-16A-T13#B00 is a Thyristors - SCRs manufactured by Renesas Electronics America Inc. SCR 800V 3.1A MP3A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 4,799
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - On State (It (AV)) (Max) | 2 A |
| Current - On State (It (RMS)) (Max) | 3.1 A |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Off State (Max) | 100 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A @ 60Hz |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

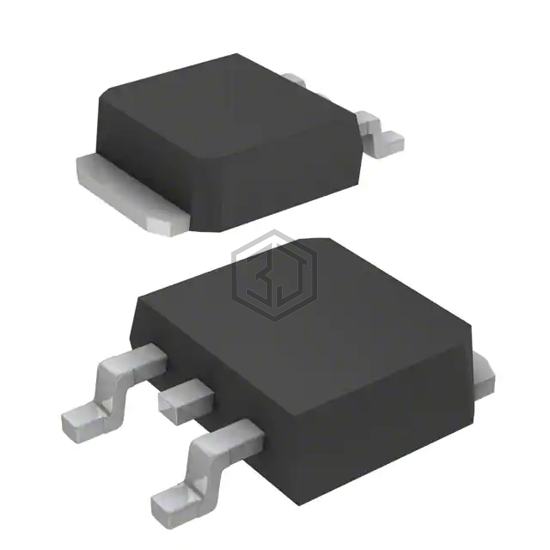

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | MP-3A |
Submit your RFQ for CR2AS-16A-T13#B00 and get a quote within 24 hours.
