Renesas Electronics America Inc

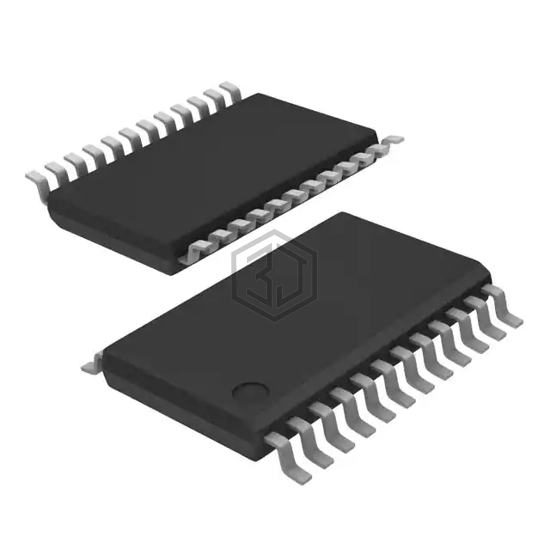

IC CLK BUFFER 3:6 700MHZ 24TSSOP
8536AG-01LF is a Clock/Timing - Clock Buffers, Drivers manufactured by Renesas Electronics America Inc. IC CLK BUFFER 3:6 700MHZ 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 2.375V ~ 3.465V, package / case 24-TSSOP (0.173", 4.40mm Width).
In Stock: 9,477
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input:Output | 3:6 |
| Differential - Input:Output | Yes/Yes |
| Input | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL, Crystal |
| Output | LVPECL |
| Frequency - Max | 700 MHz |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
8536AG-01LF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PL138-98FC | Microchip Technology | IC CLK BUFFER 2:9 700MHZ 32LQFP | 100% | View |
| 85314AGI-11LF | Renesas | CLOCK FANOUT BUFFER (DISTRIBUTIO | 100% | View |
| 831742AGILFT | Renesas Electronics America Inc | IC TIMING | 97% | View |
| 854104AGLF-HT | Renesas Electronics America Inc | IC CLOCK BUFFER 16TSSOP | 96% | View |
| 8P791208NLGI8 | Renesas Electronics America Inc | VFQFPN 5.00X5.00X0.90 MM, 0.50MM | 95% | View |
| 8P391208NLGI8 | Renesas Electronics America Inc | IC CLOCK BUFFER 32VFQFPN | 95% | View |
Submit your RFQ for 8536AG-01LF and get a quote within 24 hours.
