Renesas Electronics America Inc
IC FF D-TYPE SNGL 8BIT

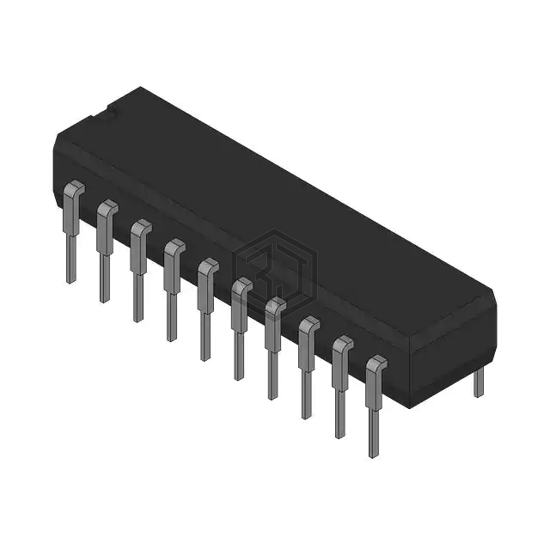

74HC534P-E is a Logic - Flip Flops manufactured by Renesas Electronics America Inc. IC FF D-TYPE SNGL 8BIT. Key specifications: operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, output type Tri-State, Inverted.
In Stock: 7,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 60 MHz |
| Max Propagation Delay @ V, Max CL | 28ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA |
| Input Capacitance | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | - |
| Supplier Device Package | - |
| Package / Case | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74HC534AFEL | Motorola | IC FF D-TYPE SNGL 8BIT | 100% | View |
| MC74HC564AFL2 | onsemi | IC FF D-TYPE SNGL 8BIT | 100% | View |
| MC74HC564AF | Motorola | IC FF D-TYPE SNGL 8BIT | 100% | View |
| 74HCT564P-E | Renesas Electronics America Inc | IC FF D-TYPE SNGL 8BIT | 86% | View |
Submit your RFQ for 74HC534P-E and get a quote within 24 hours.
