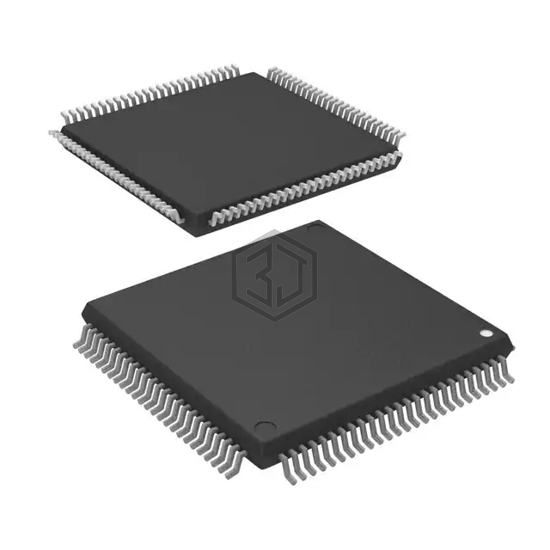

DF36109GHV - 16-BIT SINGLE-CHIP
DF36109GHV is a Embedded - Microcontrollers manufactured by Renesas. DF36109GHV - 16-BIT SINGLE-CHIP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 100-LQFP.
In Stock: 690
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | H8/300H |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SCI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 16x10b SAR; D/A 1x10b |
| Oscillator Type | External, Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LFQFP (14x14) |
DF36109GHV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F2L3ACBDFP#UA | Renesas Electronics America Inc | 16-BIT, FLASH, R8C CPU | 91% | View |
| R5F2135CMNFP#50 | Renesas Electronics America Inc | IC MCU 16BIT 128KB FLASH 52LQFP | 86% | View |
| ATMEGA88PB-MN | Microchip Technology | IC MCU 8BIT 8KB FLASH 32VFQFN | 78% | View |
| PIC16LF1518T-I/ML | Microchip Technology | IC MCU 8BIT 28KB FLASH 28QFN | 77% | View |
| ATTINY13-20SU | Microchip Technology | IC MCU 8BIT 1KB FLASH 8SOIC | 76% | View |
| PIC16C771T-I/SO | Microchip Technology | IC MCU 8BIT 7KB OTP 20SOIC | 74% | View |
Submit your RFQ for DF36109GHV and get a quote within 24 hours.
