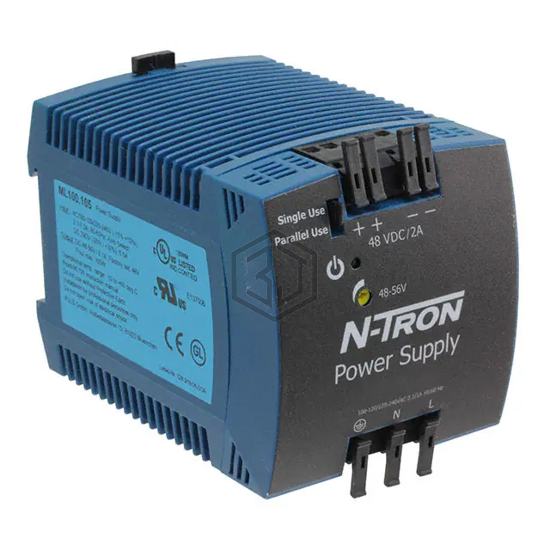

AC/DC CONVERTER 48V 100W
NTPS-48-2 is a Industrial, DIN Rail Power Supplies manufactured by Red Lion Controls. AC/DC CONVERTER 48V 100W. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 2.1A, size / dimension 4.22" L x 2.84" W x 4.22" H (107.2mm x 72.3mm x 107.2mm), number of outputs 1.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 132 VAC, 184 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.1A |
| Power (Watts) | 100W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing |
| Size / Dimension | 4.22" L x 2.84" W x 4.22" H (107.2mm x 72.3mm x 107.2mm) |
| Approval Agency | CB, CE, UL |
| Standard Number | - |
Submit your RFQ for NTPS-48-2 and get a quote within 24 hours.
