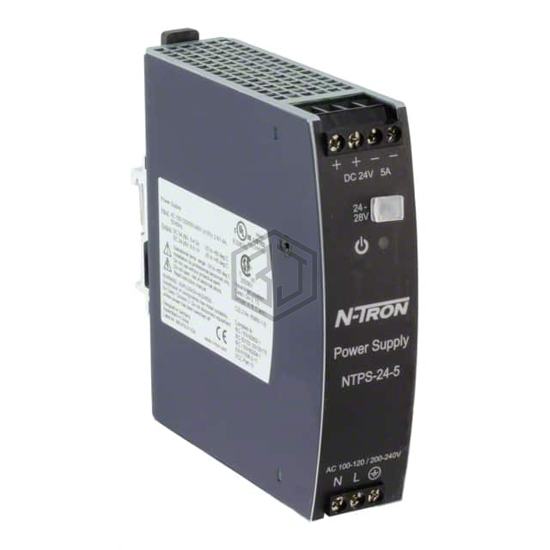

DIN PWR SUPPLY 5A24VDC
NTPS-24-5 is a Industrial, DIN Rail Power Supplies manufactured by Red Lion Controls. DIN PWR SUPPLY 5A24VDC. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 5A, size / dimension 4.61" L x 1.26" W x 4.88" H (117.0mm x 32.0mm x 124.0mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 120 VAC, 220 ~ 240 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 120W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90.2% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing |
| Size / Dimension | 4.61" L x 1.26" W x 4.88" H (117.0mm x 32.0mm x 124.0mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
