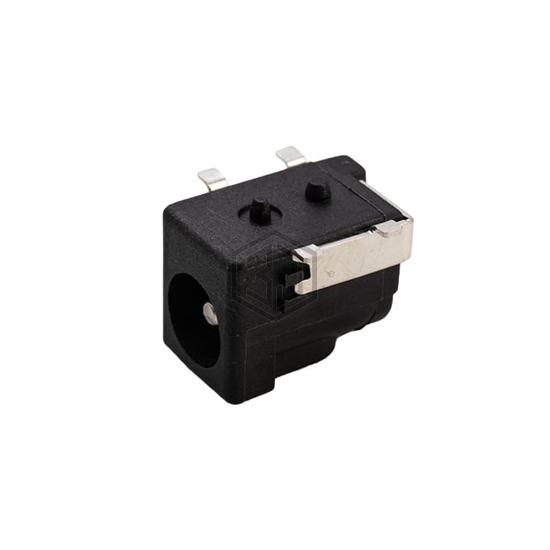

2.0 MM SMT DC POWER JACK
RDJ-0210A-CSMT is a Barrel - Power Connectors manufactured by RDI, Inc.. 2.0 MM SMT DC POWER JACK. Key specifications: mounting type Surface Mount, Through Hole, voltage - rated 24VDC, current rating (amps) 3.5 A, termination Solder, Solder Eyelet(s).
In Stock: 1,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.256" (6.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Through Hole |
| Mounting Feature | - |
| Termination | Solder, Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 3.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for RDJ-0210A-CSMT and get a quote within 24 hours.
