NORDIC NRF5340 U.FL CONNECTOR MO

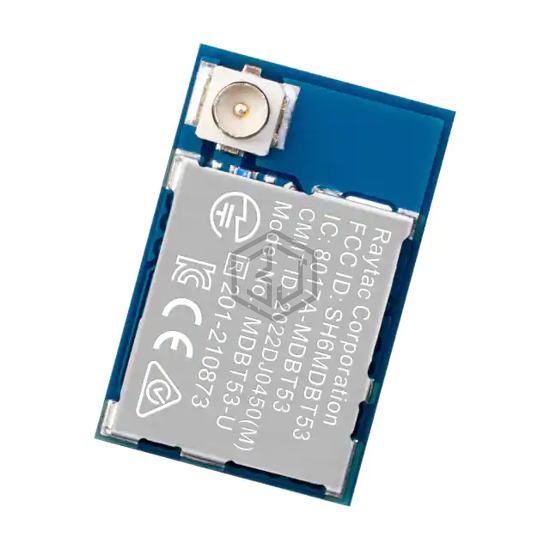

MDBT53-U1M is a RF Transceiver Modules and Modems manufactured by Raytac. NORDIC NRF5340 U.FL CONNECTOR MO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 1.7V ~ 5.5V, package / case 65-SMD Module.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | ANT+, Bluetooth v5.2, Thread, Zigbee® |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 2Mbps |
| Power - Output | 3dB |
| Sensitivity | -104dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | nRF5340 |
| Memory Size | 1MB Flash, 512kB RAM |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Receiving | 2.7mA ~ 7.9mA |
| Current - Transmitting | 1.5mA ~ 11.3mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 65-SMD Module |
Submit your RFQ for MDBT53-U1M and get a quote within 24 hours.
