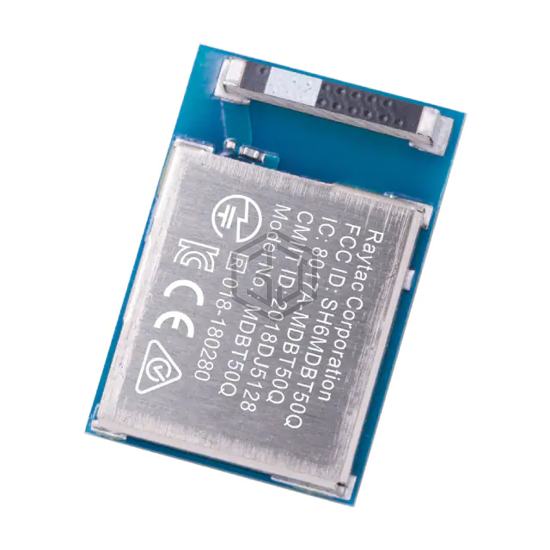

NORDIC 52840 CHIP ANTENNA MODULE
MDBT50Q-1MV2 is a RF Transceiver Modules and Modems manufactured by Raytac. NORDIC 52840 CHIP ANTENNA MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.7V ~ 5.5V, package / case 61-SMD Module.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.2, Zigbee® |
| Modulation | - |
| Frequency | 2.36GHz ~ 2.5GHz |
| Data Rate | 2Mbps |
| Power - Output | 8dBm |
| Sensitivity | -103dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SPI, PDM, PWM, UART, USB |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | nRF52840 |
| Memory Size | 1MB Flash, 256kB RAM |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Receiving | 3.7mA ~ 11.1mA |
| Current - Transmitting | 2.7mA ~ 32.7mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 61-SMD Module |
Submit your RFQ for MDBT50Q-1MV2 and get a quote within 24 hours.
