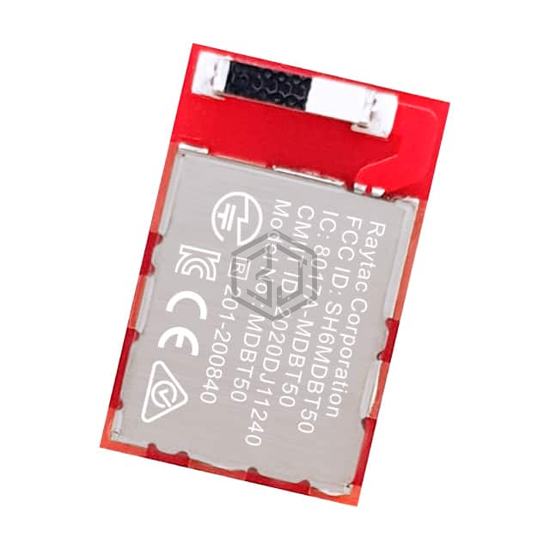

NORDIC 52820 CHIP ANTENNA MODULE
MDBT50-256R is a RF Transceiver Modules and Modems manufactured by Raytac. NORDIC 52820 CHIP ANTENNA MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 1.7V ~ 5.5V, package / case 31-SMD Module.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Bluetooth v5.1, Bluetooth v5.2, Thread, Zigbee® |
| Modulation | - |
| Frequency | 2.36GHz ~ 2.5GHz |
| Data Rate | 2Mbps |
| Power - Output | 8dBm |
| Sensitivity | -103dBm |
| Serial Interfaces | ADC, GPIO, I²C, SPI, UART, USB |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | nRF52820 |
| Memory Size | 256kB Flash, 32kB RAM |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Receiving | 3.4mA ~ 10.9mA |
| Current - Transmitting | 2.3mA ~ 30mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 31-SMD Module |
